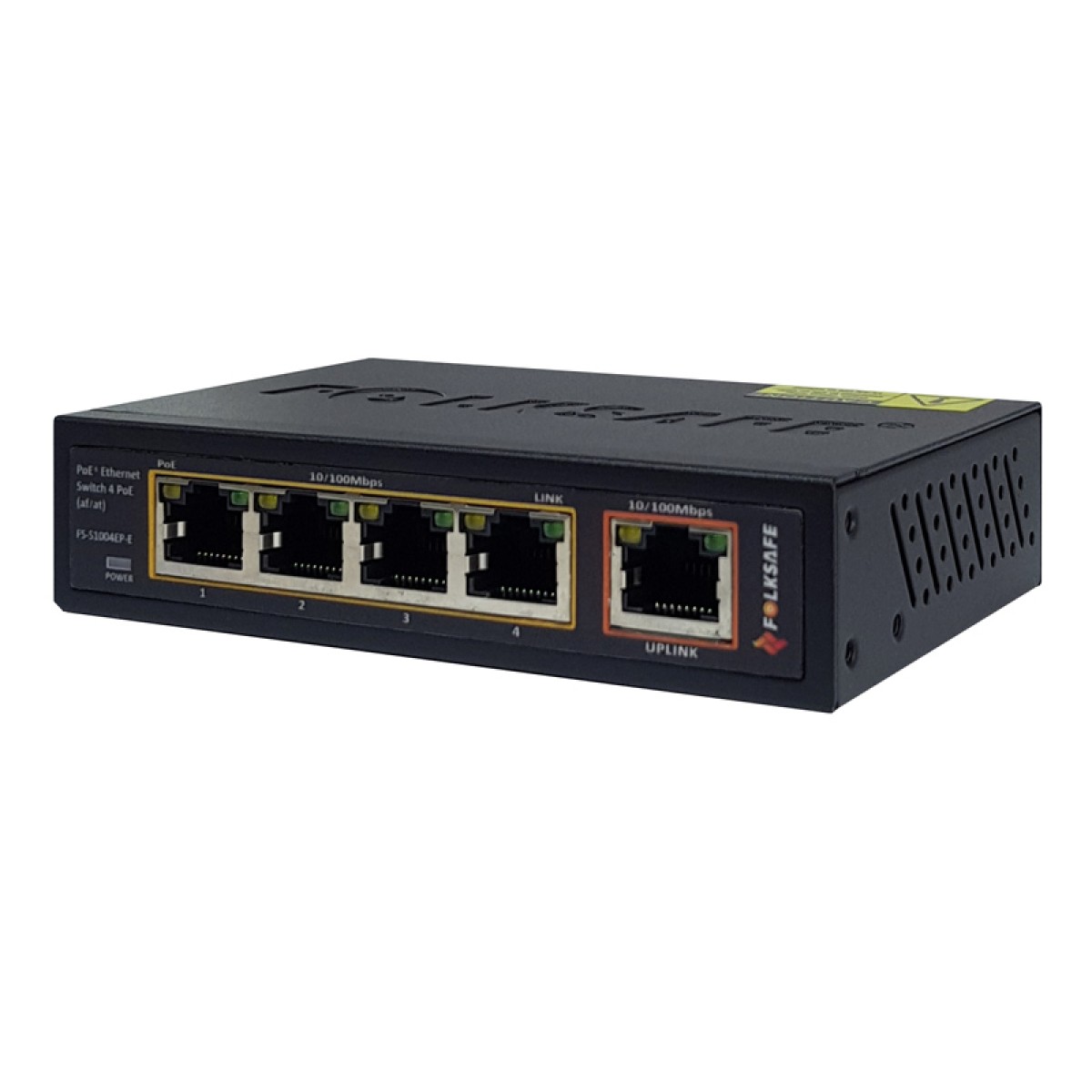

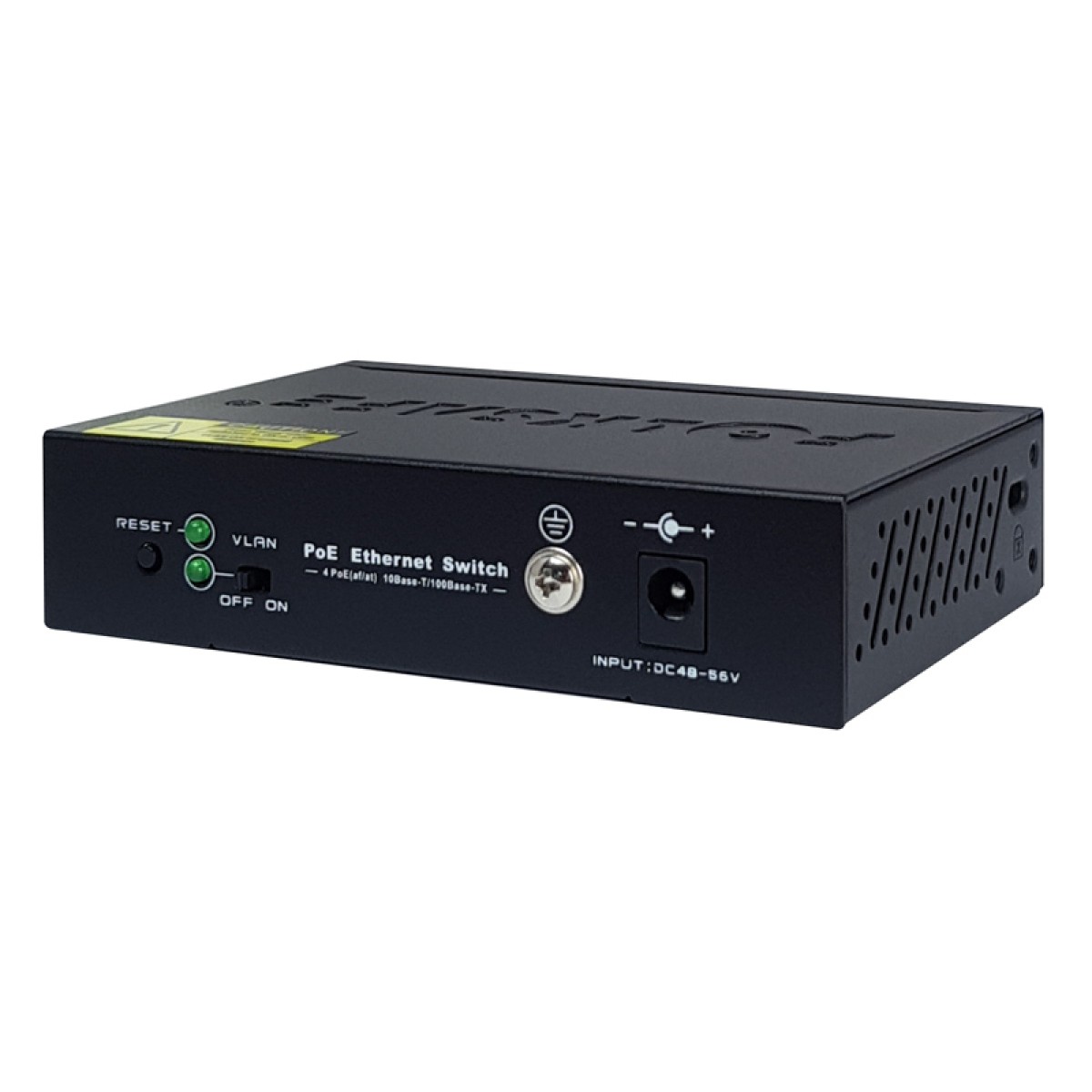

FOLKSAFE PoE Ethernet Switch FS-S1004EP-E, 4 Ports 10/100Mbps

FOLKSAFE PoE Ethernet Switch FS-S1004EP-E, 4 Ports 10/100Mbps

FOLKSAFE PoE Ethernet Switch FS-S1004EP-E, 4 Ports 10/100Mbps

-Comply with IEEE802.3, IEEE802.3u, IEEE802.3af/at standards
-Support IEEE802.3x full-duplex flow control; support Auto MDI/MDIX
-4-Port support 48V-56VDC power to PoE powered devices
-Provide 15.4W or 30W power to powered devices
-60-watts PoE budget
-External 53VDC/1.25A power adapter included
-Extra 1-Port 10/100Mbps UPLINK RJ-45
-PoE data & power transmission distance up to 100meters
-Port based VLAN for Enhancing Security
-Transmission distance up to 250meters while VLAN indicator turns on
-Backplane Bandwidth: 1.0Gbps
-Restart function helps master IC reset wholly
-Excellent anti-thunder, anti-static and anti-interference ability
-Surge Protection: 2KV
-Easy and convenient to use, plug & play, no need to configure
-Galvanized housing for stable and durable working life

Τεχνικά χαρακτηριστικά
Voltage Range: DC48~56V
Power Consumption: The device <5W, PoE power supply ?60W
Network Port: Ethernet Downlink RJ-45 Port: 4*10/100Mbps, Uplink RJ-45 Port: 1*10/100Mbps
Transmission Distance: 1~4 Ethernet Downlink RJ-45 Port: 100m, Mandatory 10 Mbps reach up to 250m, Uplink RJ-45 Port: 100m
PoE Standards: IEEE802.3af/at
PoE Power Supply Wattage: Each port ?30W, Whole device?60W
Data-Caching Mechanism: 448K
MAC Address List: 1K
Backplane Bandwidth: 1.0Gbps
Forwarding Capacity: 0.74Mpps
Surge Protection: 2KV (common mode),10/700us IEC61000-4-5, 500V (differential mode), 10/700us IEC610000-4-5
Mean time between failures (MTBF): >50000h
Dimensions (L*W*H): 116mmx78mmx26mm
Housing: Galvanized

Περιεχόμενα συσκευασίας
switch
τροφοδοτικό
βάση με βίδες
user manual
