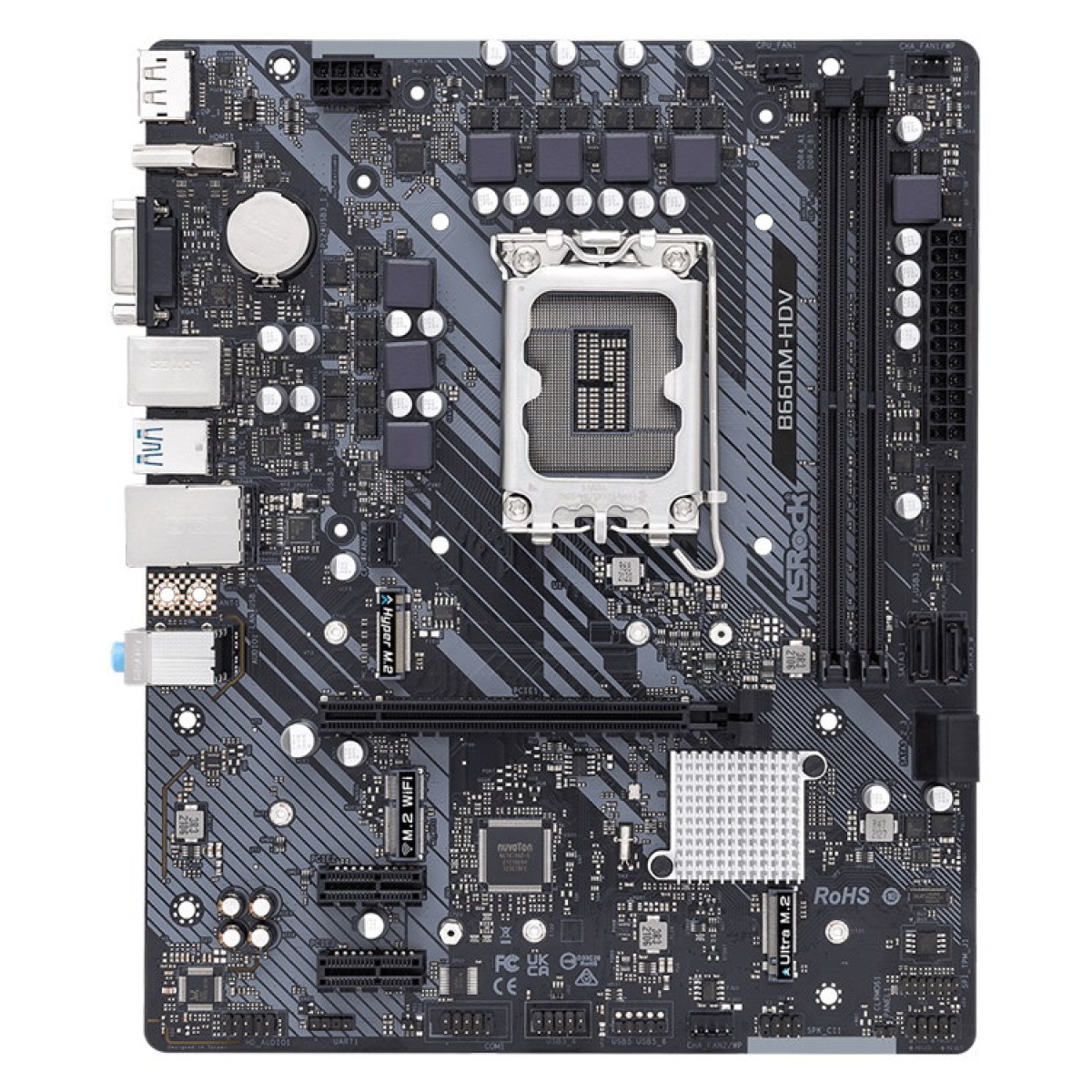

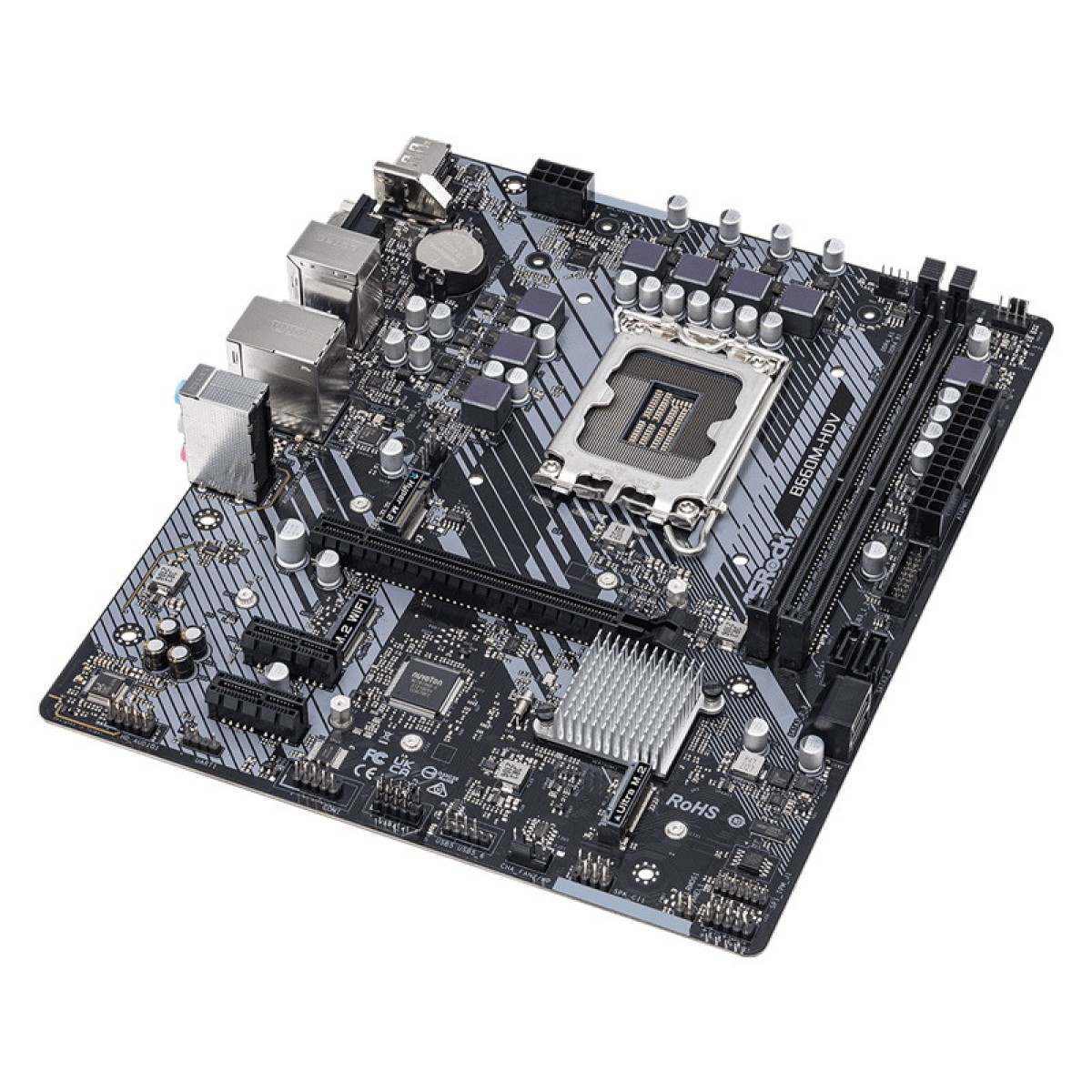

Η B660M-HDV της Asrock είναι μια αξιόπιστη μητρική κάρτα, ιδανική για χρήση τόσο σε home PC όσο και σε bussiness PC. Κατασκευάζεται από αξιόπιστα components και εξοπλίζεται με όλες τις σύγχρονες τεχνολογίες που προσφέρουν αυξημένες ταχύτητες και σταθερή απόδοση. Υποστηρίζει επεξεργαστές οι οποίοι είναι συμβατοί με το socket s1700 και βασίζεται στο chipset B660 της Intel.
Διαθέτει τρεις εξόδους γραφικών: D-Sub Port, HDMI και DisplayPort.

-Supports 12th Gen Intel® Core™ Processors (LGA1700)
-6 Phase Power Design
-Supports DDR4 5066MHz (OC)
-PCIe 4.0 x16, 2 PCIe 3.0 x1
-M.2 Key-E for WiFi
-Graphics Output Options: HDMI, DisplayPort, D-Sub
-Realtek ALC887/897 7.1 CH HD Audio Codec, Nahimic Audio
-4x SATA3
-Hyper M.2 (PCIe Gen4 x4)
-Ultra M.2 (PCIe Gen3 x4 & SATA3)
-6x USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front)
-5x USB 2.0 (2 Rear, 3 Front)
-Intel® Gigabit LAN

Τεχνικά Χαρακτηριστικά
CPU: Supports 12th Gen Intel® Core™ Processors (LGA1700)
Chipset: Intel B660
Memory: Dual Channel DDR4, 2x DDR4 DIMM Slots
Audio: 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec), Supports Surge Protection
LAN: Gigabit LAN 10/100/1000 Mb/s, Giga PHY Intel® I219V
Slots: 1x PCIe Gen4x16 Slot, 2x PCIe Gen3x1 Slots, 1x M.2 Socket (Key E),
Storage: 4x SATA3 6.0 Gb/s, 1x Hyper M.2 Socket (M2_1, Key M), 1x Ultra M.2 Socket (M2_2, Key M)
Graphics: D-Sub, HDMI and DisplayPort 1.4
RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Form Factor: Micro ATX Form Factor: 24.4 cm x 20.1 cm
Connector:
1x COM Port Header
1x SPI TPM Header
1x Chassis Intrusion and Speaker Header
1x CPU Fan Connector (4-pin)*
1x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
2x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1x 24 pin ATX Power Connector
1x 8 pin 12V Power Connector
1x Front Panel Audio Connector
2x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)
1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

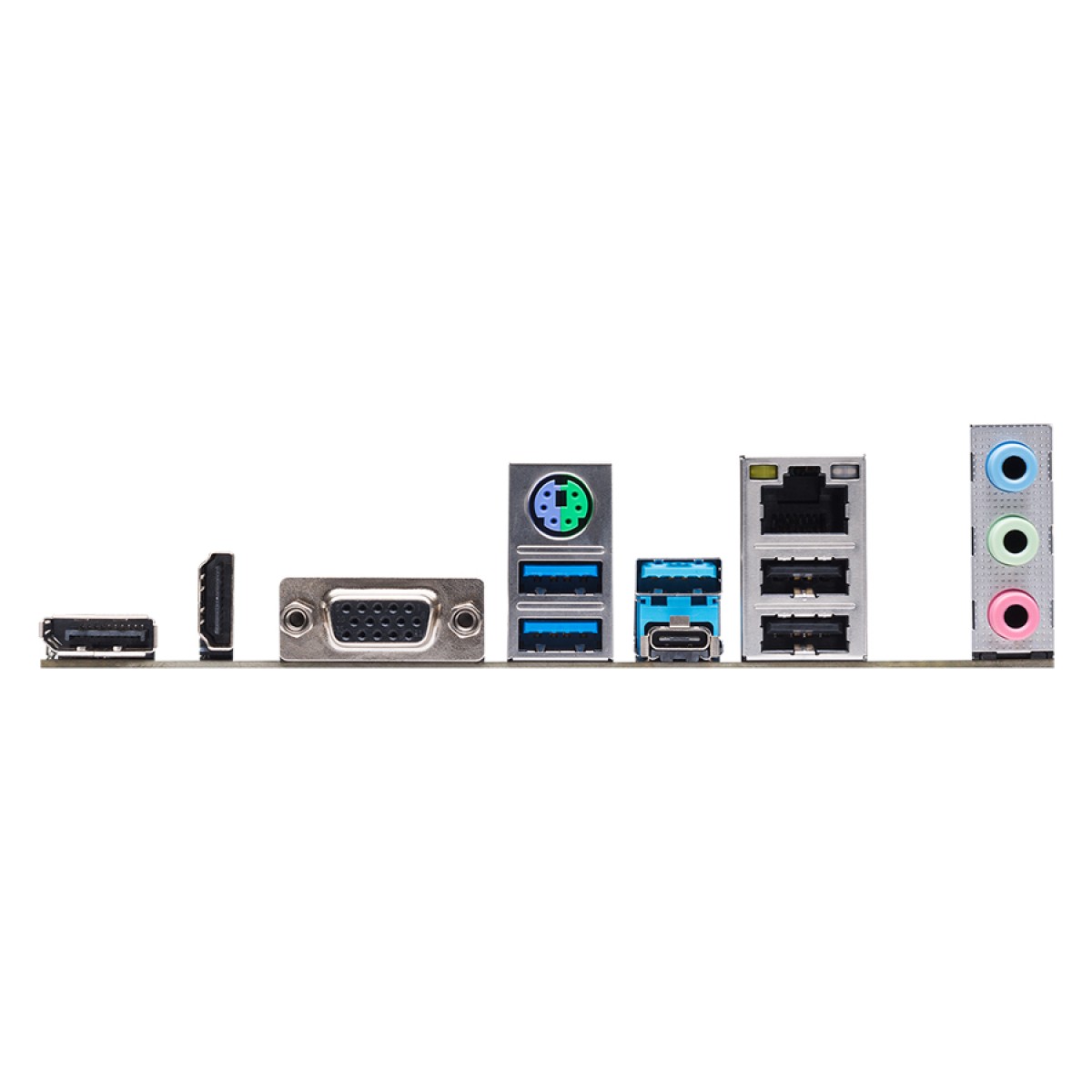

Rear Panel I/O
2x Antenna Mounting Points
1x PS/2 Mouse/Keyboard Port
1x D-Sub Port
1x HDMI Port
1x DisplayPort 1.4
3x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
1x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)
2x USB 2.0 Ports (Supports ESD Protection)
1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
