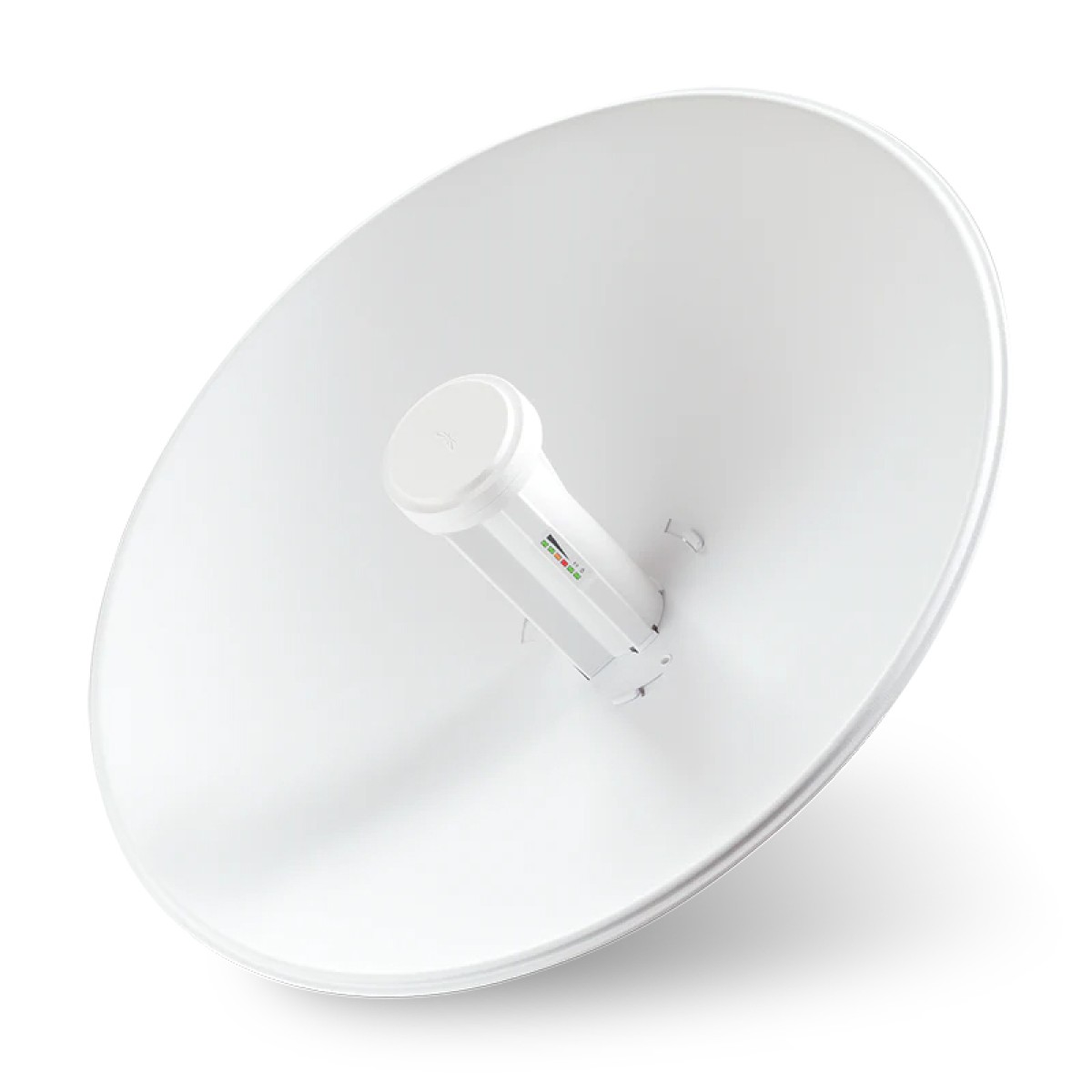

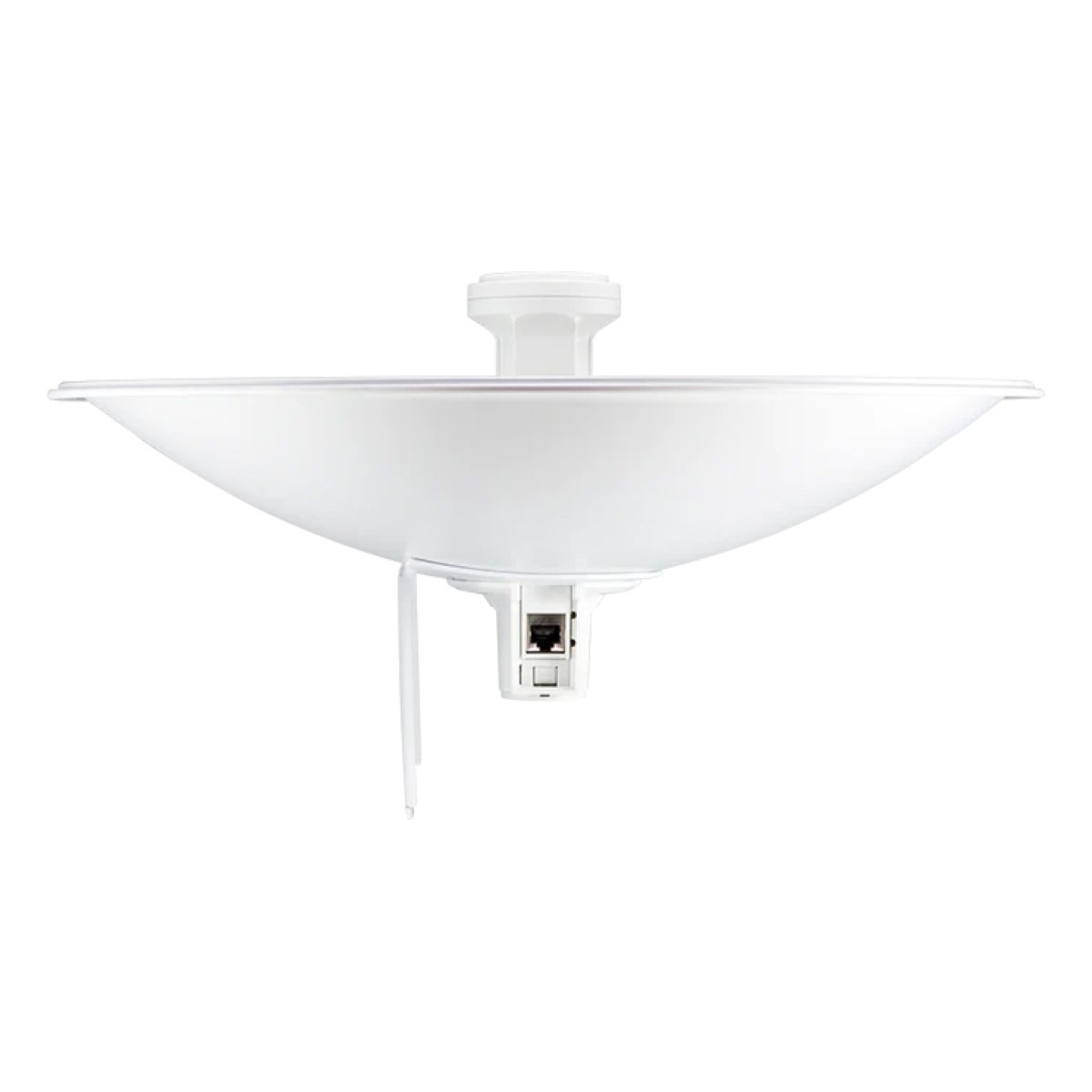

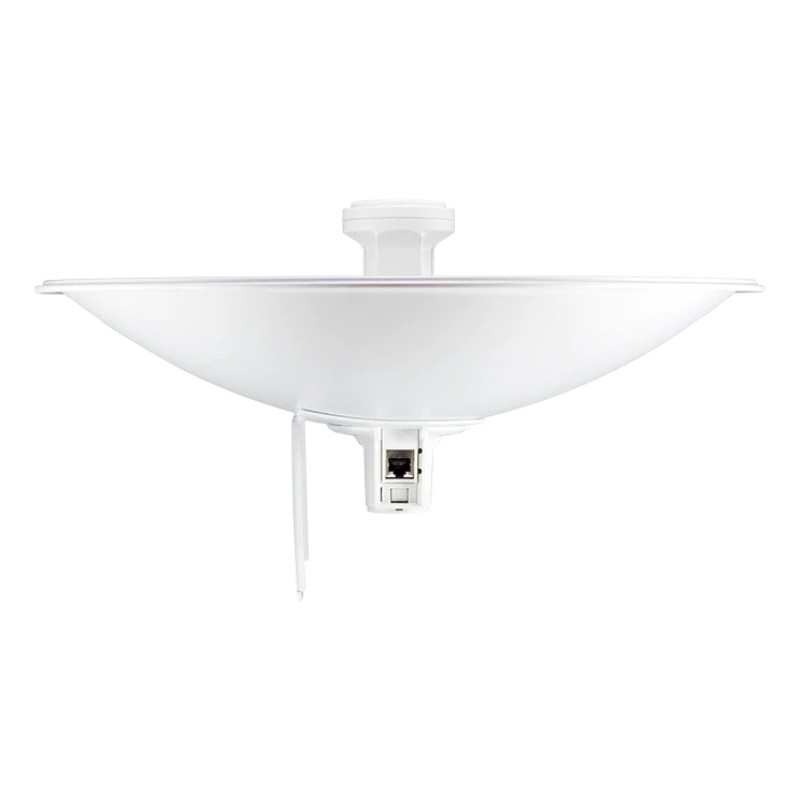

UBIQUITI UISP airMAX PowerBeam M5 400 mm Bridge, 5GHz, 25dBi

UBIQUITI UISP airMAX PowerBeam M5 400 mm Bridge, 5GHz, 25dBi

UBIQUITI UISP airMAX PowerBeam M5 400 mm Bridge, 5GHz, 25dBi

Τεχνικά Χαρακτηριστικά:
Enclosure material: UV-stabilized plastic
Mounting: Pole mount kit (Included)
Wind survivability: 200 km/h (125 mph)
Wind loading: 342.5 N @ 200 km/h (77 lbf @ 125 mph)
Networking interface: (1) 10/100/1000 MbE port
Power method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Power supply: 24V, 0.5A Gigabit PoE adapter (Included)
Max. power consumption: 8W
Max. TX power: 26 dBm
Gain: 25 dBi
ESD/EMP protection: Air/contact: ± 24 kV
LEDs: (1) Power, (1) LAN, (4) WLAN
Signal Strength LEDs: Software-adjustable to correspond to custom RSSI levels
Salt fog test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G method 509.5
Vibration test: IEC 68-2-6
Temperature shock test: IEC 68-2-14
UV test: IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-driven rain test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G method 506.5
Operating temperature: -40 to 70° C (-40 to 158° F)
Operating humidity: 5 to 95% noncondensing
Gain: 22 dBi
Channel sizes: 5/8/10/20/30/40 MHz
Polarization: Dual linear
Operating Frequency (MHz): 5170 - 5875 MHz
Dimensions: 420 x 420 x 275 mm
Weight: 1.75kg

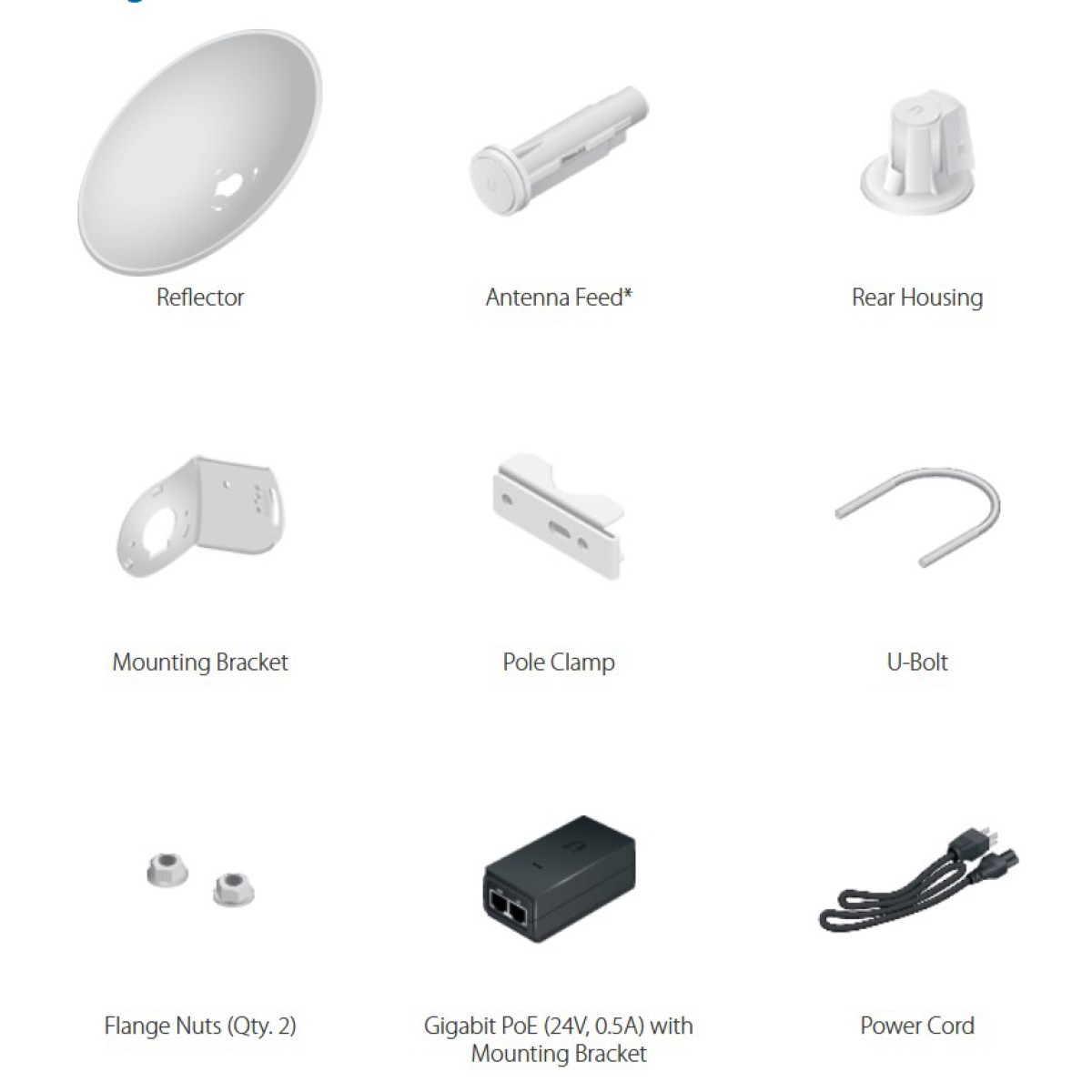

Περιεχόμενα συσκευασίας

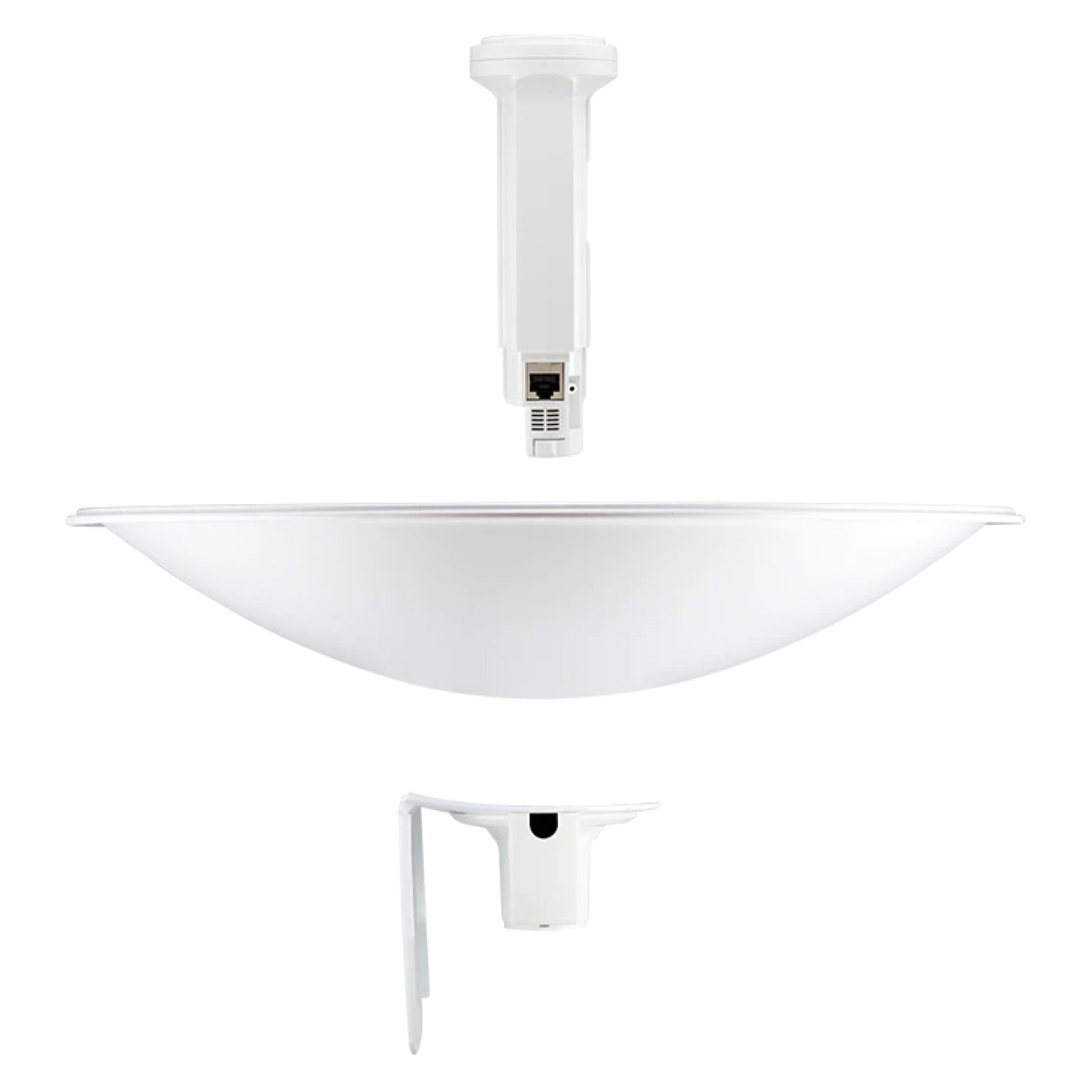

Reflector
Antenna Feed
Rear Housing
Mounting Bracket
Pole Clamp
U-Bolt
2x Flange Nuts
Gigabit PoE (24V, 0.5A) with Mounting Bracket
Power Cord
