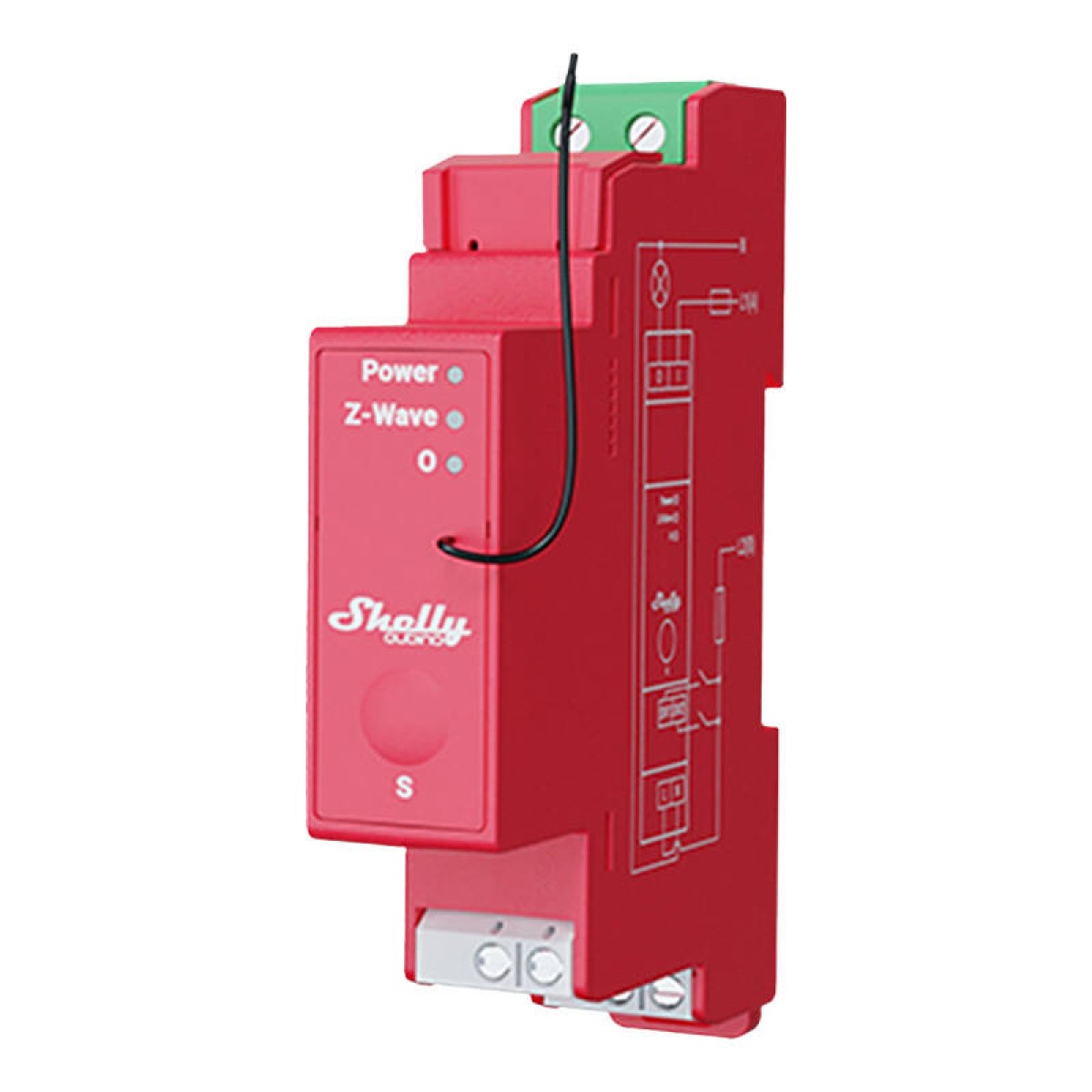

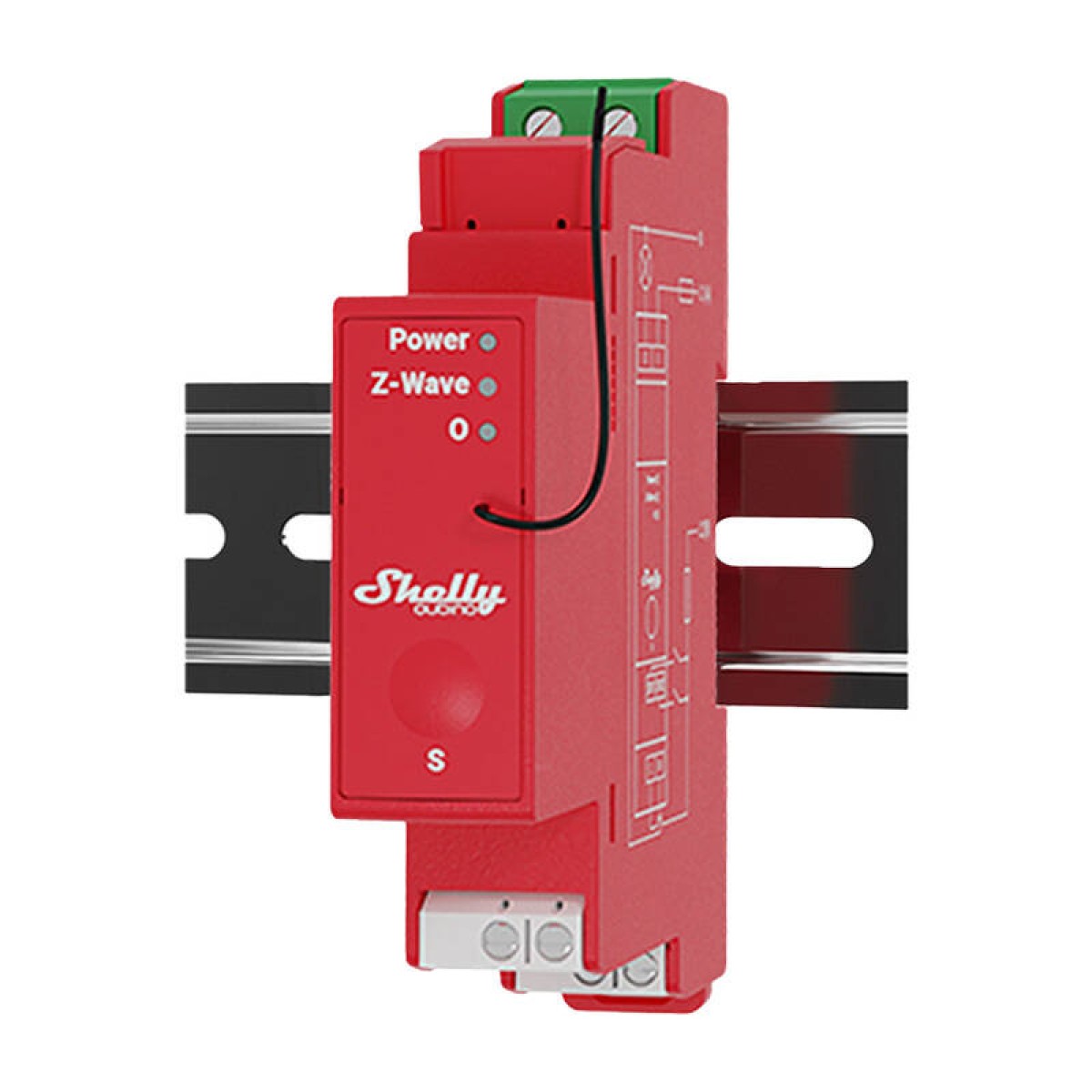

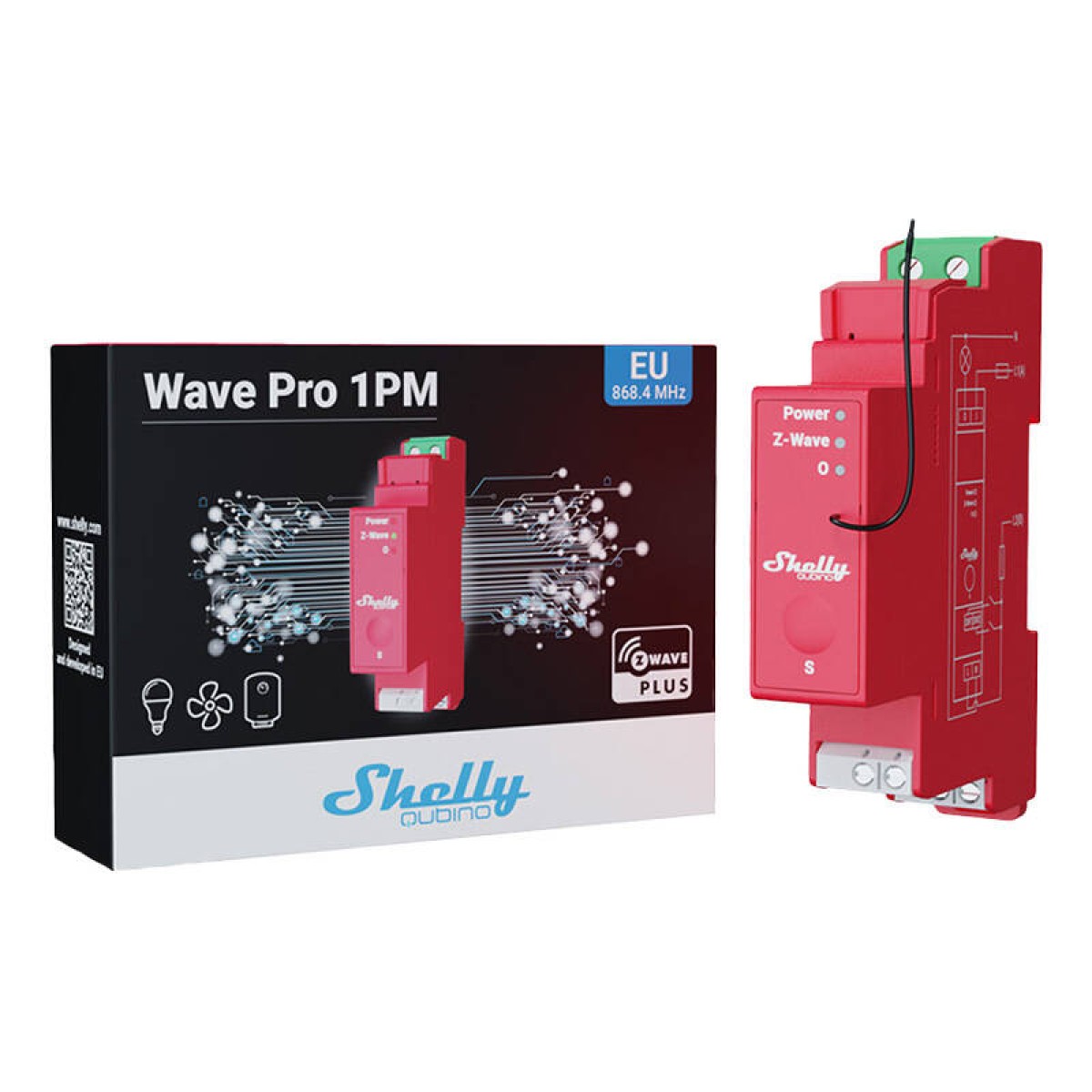

1-channel DIN rail relay with energy measurement Shelly Qubino Pro 1PM
Shelly Qubino Pro 1PM 1-channel DIN rail relay with energy metering
Want to gain full control over lighting and other electrical devices in your home? Meet the Shelly Qubino Pro 1PM! The 1-channel relay, designed to be mounted on a standard DIN rail, features potential-free contacts, providing great flexibility in the area of handling different voltages and a wide range of possibilities in home automation. The ability to control a load of up to 16 A guarantees reliable operation even for more demanding devices. With its energy metering function, it allows you to track the energy consumption of connected devices, allowing you to consciously manage your energy consumption and reduce your electricity bills.
Unlimited possibilities
Shelly Qubino Pro 1PM is perfect for a variety of home automation scenarios. It can be used to control lighting, heating, ventilation and other electrical devices, giving the user full control over their functions. With it, you can create schedules, scenarios and automated action sequences that will make your home work exactly the way you want it to!
| Manufacturer | Shelly |
|---|---|
| Power supply | 110 - 240 V AC, 50/60 Hz |
| Power consumption | < 0,3 W |
| Power measurement [W]. | Yes |
| Max. switching voltage AC | 240 V |
| Max. switching current AC | 16 A |
| Protection against overheating | Tak |
| Overload protection | Tak |
| Overvoltage protection | Tak |
| Range | Up to 40 m indoors |
| Z-Wave® amplifier: | Tak |
| CPU | Z-Wave® S800 |
| Z-Wave® frequency bands | 868.4 MHz; 865.2 MHz; 869.0 MHz; 921.4 MHz; 908.4 MHz; 916 MHz; 919.8 MHz; 922.5 MHz; 919.7-921.7-923.7 MHz; 868.1 MHz; 920.9 MHz |
| Maximum transmit power in the frequency bands | < 25 mW |
| Dimensions | 94 x 19x 69 ±0.5 mm |
| Weight | 61 g |
| Mounting | DIN rail |
| Housing material | Plastic |
| Color | Red |
| Ambient temperature | -20°C to 40°C / -5°F to 105°F |
| Humidity | 30% to 70% RH |
| Max altitude | 2000 m |
